Empty Gelatin Capsules - Size #4 Clear
- Derived from Completely Natural Sources - Our gelatin capsules come from natural bovine sources
- Bulk Quantities Available - We provide bulk amounts of capsules. Fill out the form below for a competitive quote on bulk quantities of Empty Gelatin Capsules Size #4 Clear
- Packaged in the United States - We proudly package our capsules in the USA. Providing the highest quality capsules possible.
Get a Bulk Capsule Quote
If you require larger quantities than what we offer on the website then please fill out the form below and we will provide you with our most competitive quote. Please note bulk quantity prices start at quantities over 1 million capsules. If you require less than this it is quickest to make payment through the website.

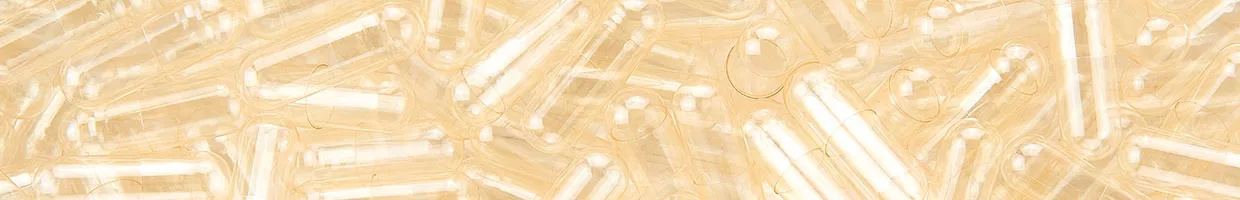

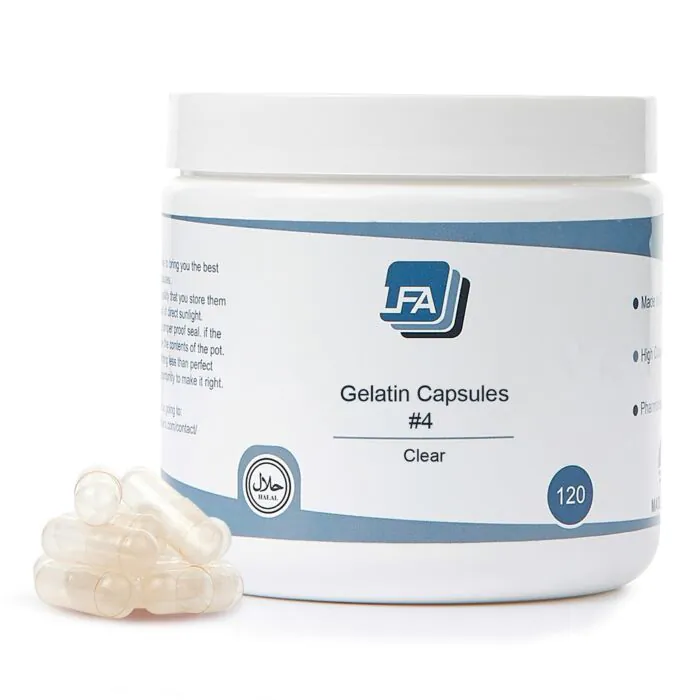

These are two-piece clear empty hard gelatin capsules in size #4. Packaged in the United States of America these capsules are the highest possible quality product. We supply them in a plastic pots to keep them protected whilst shipping and in between being used.
Empty Capsules are a great way to create your own custom supplement formulations at home or for creating a new line of products. Whatever your need, our capsules will allow you to quickly combine powders into formulas and dosages exactly as needed.
We offer gelatin, hpmc and pullulan capsules in all standard sizes and a range of colors. These capsules are size4. If you are unsure which size is best for you then checkout our capsule size guide for some help.
We also offer all of our capsule range in wholesale quantities. Please get in contact for more details.
Benefits of Size #4 Gelatin Capsules
Get Information on
Empty Gelatin Capsules - Size #4 Clear
Enter your details to get the User manual, Spec Sheet and Video links for Empty Gelatin Capsules - Size #4 Clear
Require Bulk Quantities of Size #4 Gelatin Capsules?
We provide all of our capsules in bulk quantities. If you would like to place a larger order of clear empty hard gelatin capsules in size #4 or any of our other hard caps then please click the "Get Bulk Capsules Quote" below. Fill out your details including the delivery address and our team will quickly provide you with the most competitive possible quote for bulk quantities.
We stock bulk quantities of all of our different types of capsules. So if you require larger amounts of gelatin, hpmc or pullulan any of our standard range of colors then contact us now. Size #4 come in boxes of 300,000 so if you let us know the amount you require and we will create a quote to the closest amount of boxes and get you producing as soon as possible.
The most common size capsule used for food supplements are 00 capsules. However there are a total of 10 standardised sizes. We stock the most common 8 sizes but do not stock as standard #00E and #0E which are "extended" versions of #00 and #0. We can source these by request.
Capsule Size Chart
| Empty Capsule Size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Capsule Size | 000 | 00E | 00 | 0E | 0 | 1 | 2 | 3 | 4 | 5 |
| Empty Capsule Weight (Gelatin) | ||||||||||
| Average Weight (mg) | 158 | 143 | 123 | 107 | 99 | 78 | 61 | 48 | 38 | 28 |
| Tolerance | ±10 | ±10 | ±7 | ±7 | ±6 | ±5 | ±4 | ±3 | ±3 | ±2 |
| Empty Capsule Weight (Vegetarian) | ||||||||||
| Average Weight (mg) | 163 | 152 | 136 | 107 | 105 | 79 | 63 | 50 | 40 | 30 |
| Tolerance | ±10 | ±10 | ±7 | ±7 | ±6 | ±5 | ±4 | ±3 | ±3 | ±2 |
| Empty Capsule Volume Capacity (ml) | ||||||||||
| Capacity | 1.37 | 1.00 | 0.90 | 0.78 | 0.68 | 0.48 | 0.36 | 0.27 | 0.20 | 0.13 |
| Empty Capsule Weight Capacity by Formulation Density (mg) | ||||||||||
| Formulation Density | ||||||||||
| 0.6 g/ml | 822 | 600 | 540 | 468 | 408 | 288 | 216 | 162 | 120 | 78 |
| 0.8 g/ml | 1096 | 800 | 720 | 624 | 544 | 384 | 288 | 216 | 160 | 104 |
| 1.0 g/ml | 1370 | 1000 | 900 | 780 | 680 | 480 | 360 | 270 | 200 | 130 |
| 1.2 g/ml | 1644 | 1200 | 1080 | 936 | 816 | 576 | 432 | 324 | 240 | 156 |
| Empty Capsule Overall Closed Length | ||||||||||
| mm | 26.1 | 25.3 | 23.4 | 23.5 | 21.6 | 19.4 | 17.6 | 15.7 | 14.3 | 11.1 |
| Tolerance (mm) | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.4 |
| Inches | 1.029 | 0.906 | 0.921 | 0.909 | 0.85 | 0.764 | 0.693 | 0.618 | 0.563 | 0.437 |
| Tolerance (inches) | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.012 | ±0.016 |
| Empty Capsule Individual Lengths (cap) | ||||||||||
| Cap (mm) | 12.95 | 12.95 | 11.80 | 11.68 | 10.85 | 9.85 | 8.80 | 8.00 | 7.20 | 6.20 |
| Tolerance (mm) | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.29 |
| Cap (inches) | 0.510 | 0.510 | 0.464 | 0.460 | 0.427 | 0.388 | 0.346 | 0.315 | 0.283 | 0.244 |
| Tolerance (inches) | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.012 |
| Empty Capsule Individual Lengths (body) | ||||||||||
| Body (mm) | 22.20 | 22.20 | 20.22 | 20.19 | 18.35 | 16.40 | 15.15 | 13.45 | 12.10 | 9.30 |
| Tolerance (mm) | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.35 | ±0.29 |
| Body (inches) | 0.879 | 0.879 | 0.796 | 0.795 | 0.722 | 0.645 | 0.596 | 0.529 | 0.476 | 0.366 |
| Tolerance (inches) | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.014 | ±0.012 |
| Empty Capsule External Diameter | ||||||||||
| Cap (mm) | 9.91 | 8.58 | 8.56 | 7.65 | 7.64 | 6.96 | 6.39 | 5.85 | 5.33 | 4.91 |
| Cap (inches) | 0.390 | 0.338 | 0.337 | 0.301 | 0.301 | 0.274 | 0.252 | 0.230 | 0.210 | 0.193 |
| Body (mm) | 9.55 | 8.25 | 8.23 | 7.36 | 7.35 | 6.63 | 6.12 | 5.60 | 5.08 | 4.68 |
| Body (inches) | 0.376 | 0.322 | 0.289 | 0.29 | ||||||
| Empty Capsule Quantity Per Case | ||||||||||
| Capsules per box | 50,000 | 65,000 | 75,000 | 90,000 | 100,000 | 125,000 | 175,000 | 200,000 | 250,000 | 350,000 |
Standard Empty Capsules Box Sizes
We offer different quantities of packet sizes from 1,000, 5,000 and 10,000 as well as in wholesale quantities.
When buying wholesale quantities each type of capsules whether Gelatin, HPMC or Vegetable come in 1 standard box size. The quantity of capsules in each box changes depending on the size as the volume of the box stays the same. We have created a table below to show the dimensions of the box as well as the quantity of capsules in each.
| Units | Height (H) mm/inches | Depth (D) mm/inches | Width (W) mm/inches |
|---|---|---|---|
| Metric (mm) | 730 mm | 397 mm | 600 mm |
| Inches | 28 3/4" | 15 5/8" | 23 5/8" |
| Capsule Size | Quantity In Standard Box |
|---|---|
| #000 | 50,000 |
| #00 | 70,000 |
| #0 | 100,000 |
| #1 | 125,000 |
| #2 | 175,000 |
| #3 | 225,000 |
| #4 | 300,000 |
| #5 | 350,000 |
| Specification | Empty Gelatin Capsules - Size #4 Clear |
|---|---|
| Net Weight (kg) | 0.08 |
